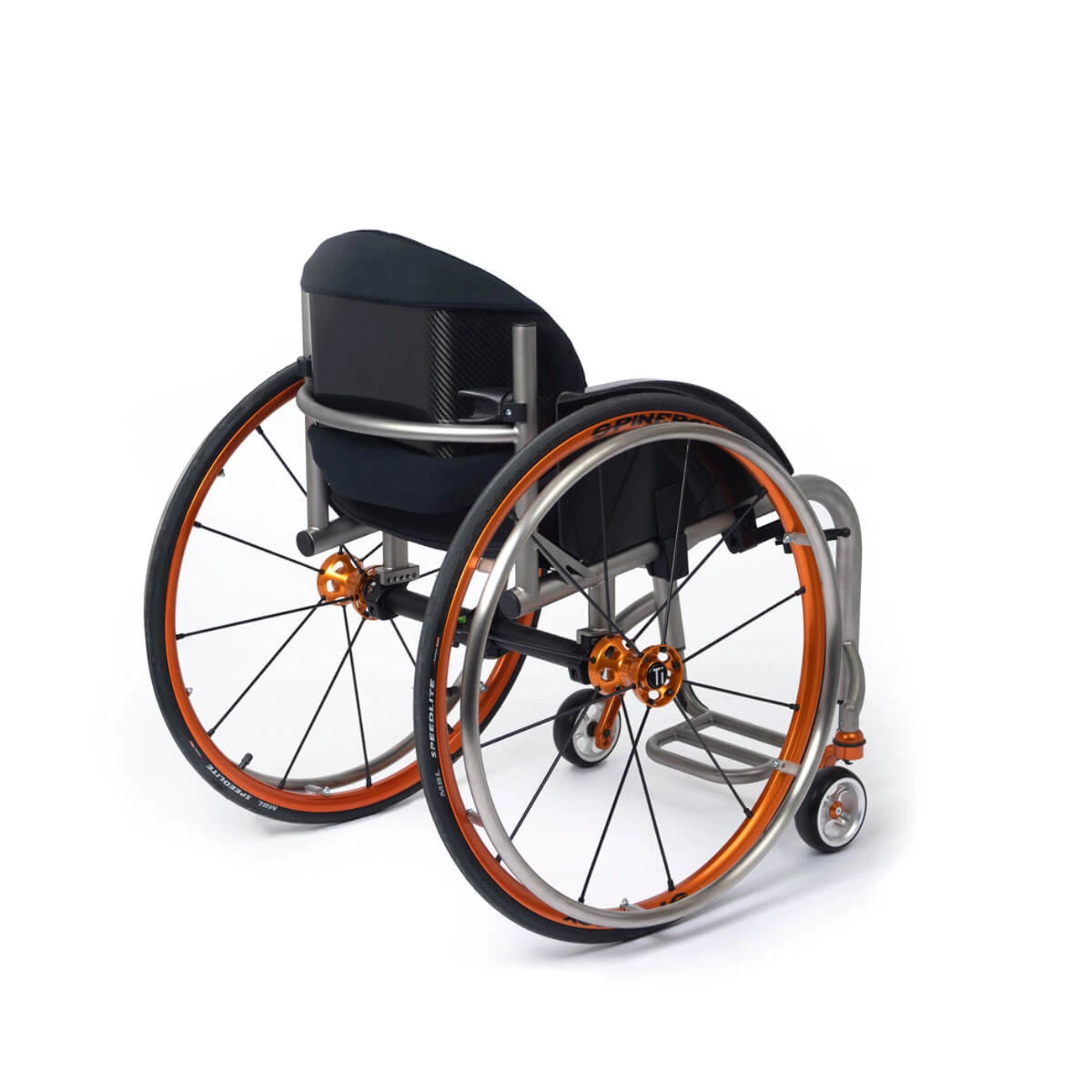

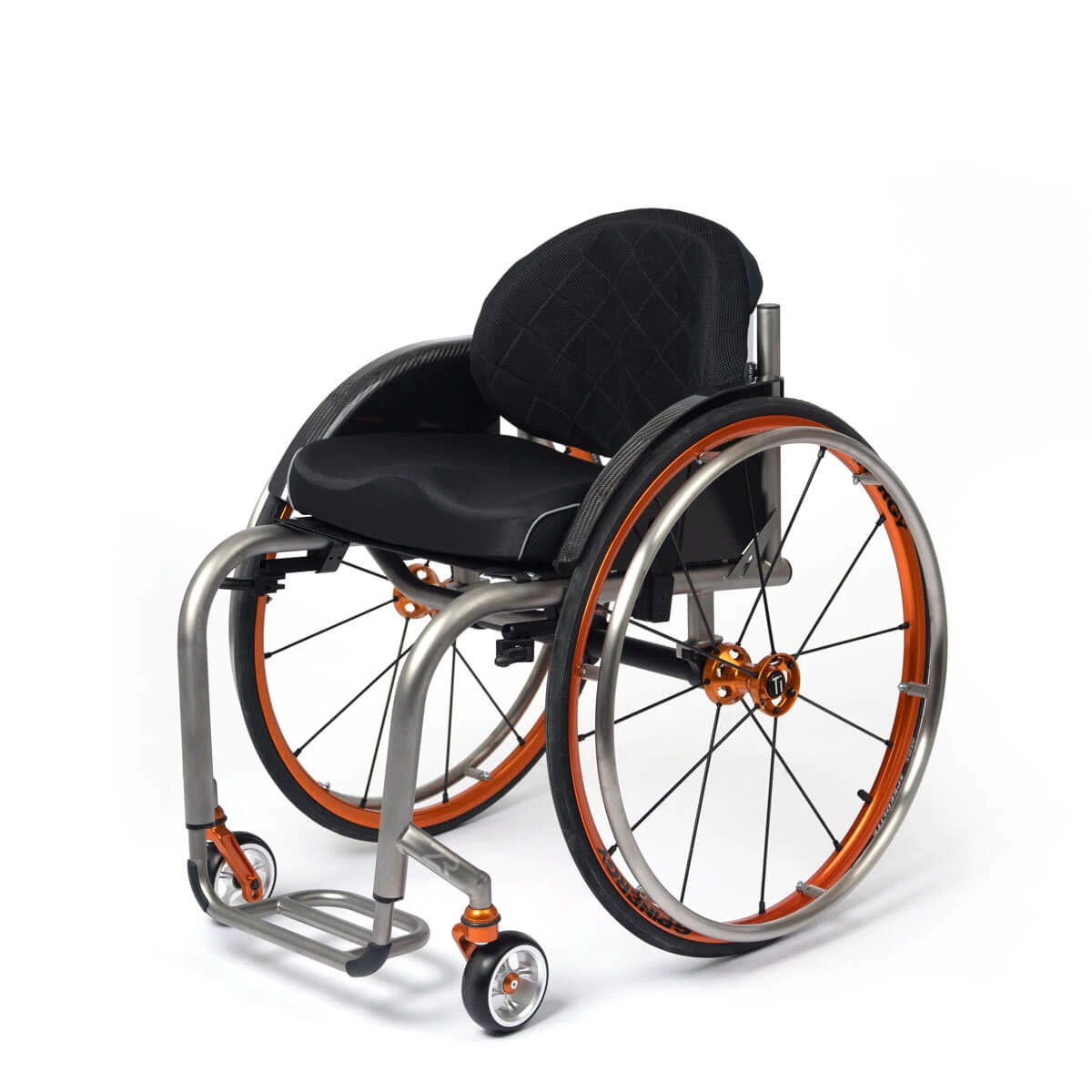

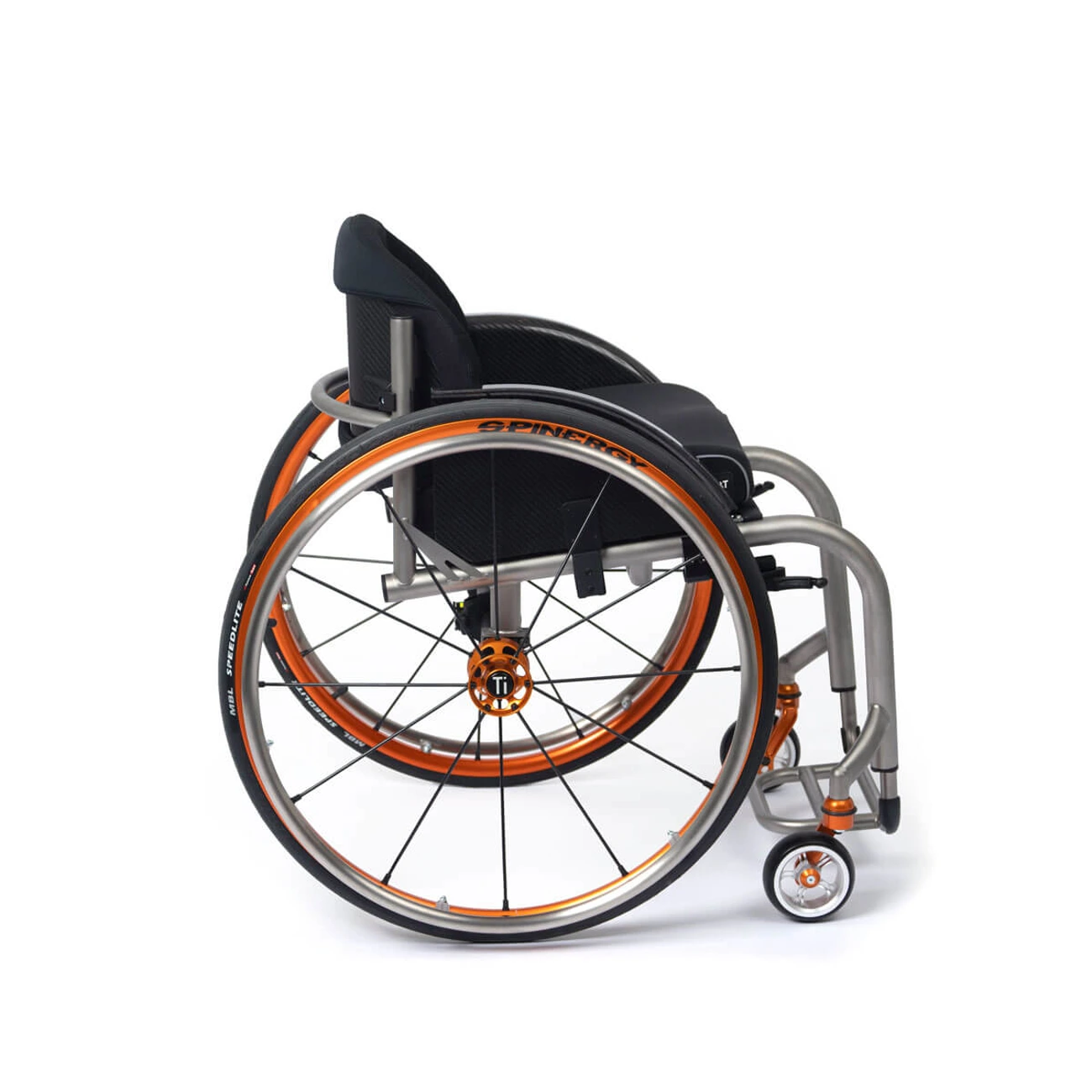

TiLite ZR
TiLite ZR – A fixed-frame wheelchair for riders who want a solid, streamlined ride.
- Aerospace-grade titanium for durability and a smooth roll
- Custom-built fixed frame tailored to you
- Fixed or ergo seating for personalized comfort
- Fixed caster angle for a light, responsive feel
- Adjustable center of gravity for balance and control
- Choice of fixed or folding backrest for flexibility
- We beat all prices with verifiable competitor quote
- Contact us for a quote tailored to your specific needs
Description
Rigid
Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.
Titanium
Titanium provides a smoother ride, won’t break, and has the highest strength-to-weight ratio of any metal on Earth.
Mono-Tube Frame
Distinguished by a clean, modern look, the mono-tube frame’s 1.25″ tubing gives the ZR and ZRA strength and durability. The frame shape affords excellent transportability.
The 1.25″ diameter mono-tube design of the TiLite ZR is the epitome of strength and simplicity. The fixed frame is designed to your specifications and uses aerospace
grade titanium for unmatched strength and durability.
| Specification | Details |
|---|---|
| Minimal Seat Width | 10” |
| Maximum Seat Width | 20” |
| Minimal Seat Depth | 10” |
| Maximal Seat Depth | 20” |
| Frame Material | Titanium |
| Frame Options | Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame |
| Ti Fit | Yes |
| Custom Configuration | Yes |
| Chair Width | 23” |
| Camber | ZR: 0°, 2°, 4°, or 6°; ZRA: 0°, 2°, 4°, 6°, 8°, or 12° |
| Footrest Width Options | Standard Taper, V-Front End |
| Seat Back Type | Folding Seat Back |
| Transit Options | ZR: Transport Bracket; ZRA: Transit Tie-Down, Transport Bracket |
| Front Seat Height Range | 16″ – 21″ |
| Rear Seat Height Range | 12.5″ – 20″ |
| Weight Limit | 265 lbs |
