Description

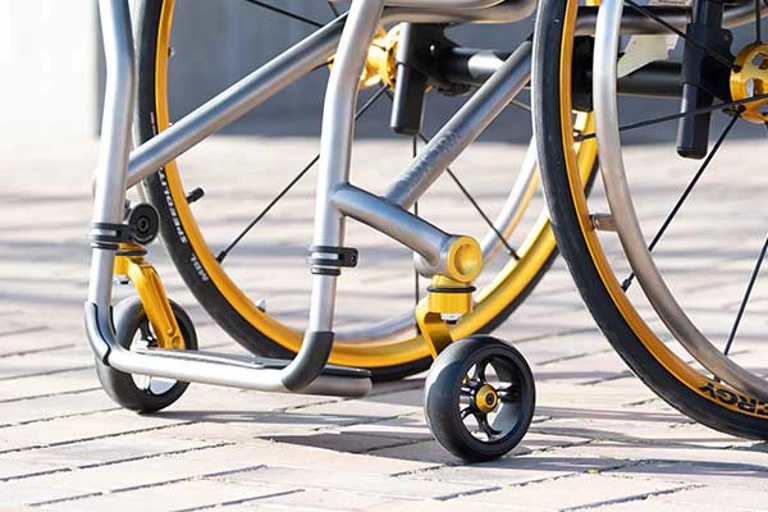

The ultimate embodiment of TiLite’s dual-tube design philosophy where more equals less. More tubing equals less weight
through better load distribution thanks to the thinner wall and
smaller diameter (1″) aerospace grade titanium tubing.
The dual-tube design of the TRA is one of TiLite’s most advanced frame configurations. Designed to minimize weight while also maximizing
performance. The adjustability of the center of gravity and backrest enables the user to experience a truly custom fit that meets their needs.
| Specification | Details |
|---|---|
| Minimal Seat Width | 12” |
| Maximum Seat Width | 20” |
| Minimal Seat Depth | 12” |
| Maximal Seat Depth | 20” |
| Frame Material | Titanium |
| Frame Options | Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame |
| Ti Fit | Yes |
| Custom Configuration | Yes |
| Chair Width | 23” |
| Camber | TR: 0°, 2°, 4°, or 6°; TRA: 0°, 2°, 4°, 6°, 8°, or 12° |
| Front Frame Angle | 70°, 75°, 80°, 85°, or 90° |
| Footrest Width Options | Standard Taper, V-Front End |
| Seat Back Type | Folding Seat Back |
| Center Of Gravity Adjustment | 5” |
| Transit Options | Q-Straint lock down approved |
| Front Seat Height Range | 15″ – 21″ |
| Rear Seat Height Range | TR: 12.5″ – 20″; TRA: 13″ – 21″ |
| Weight Limit | 265 lbs |
