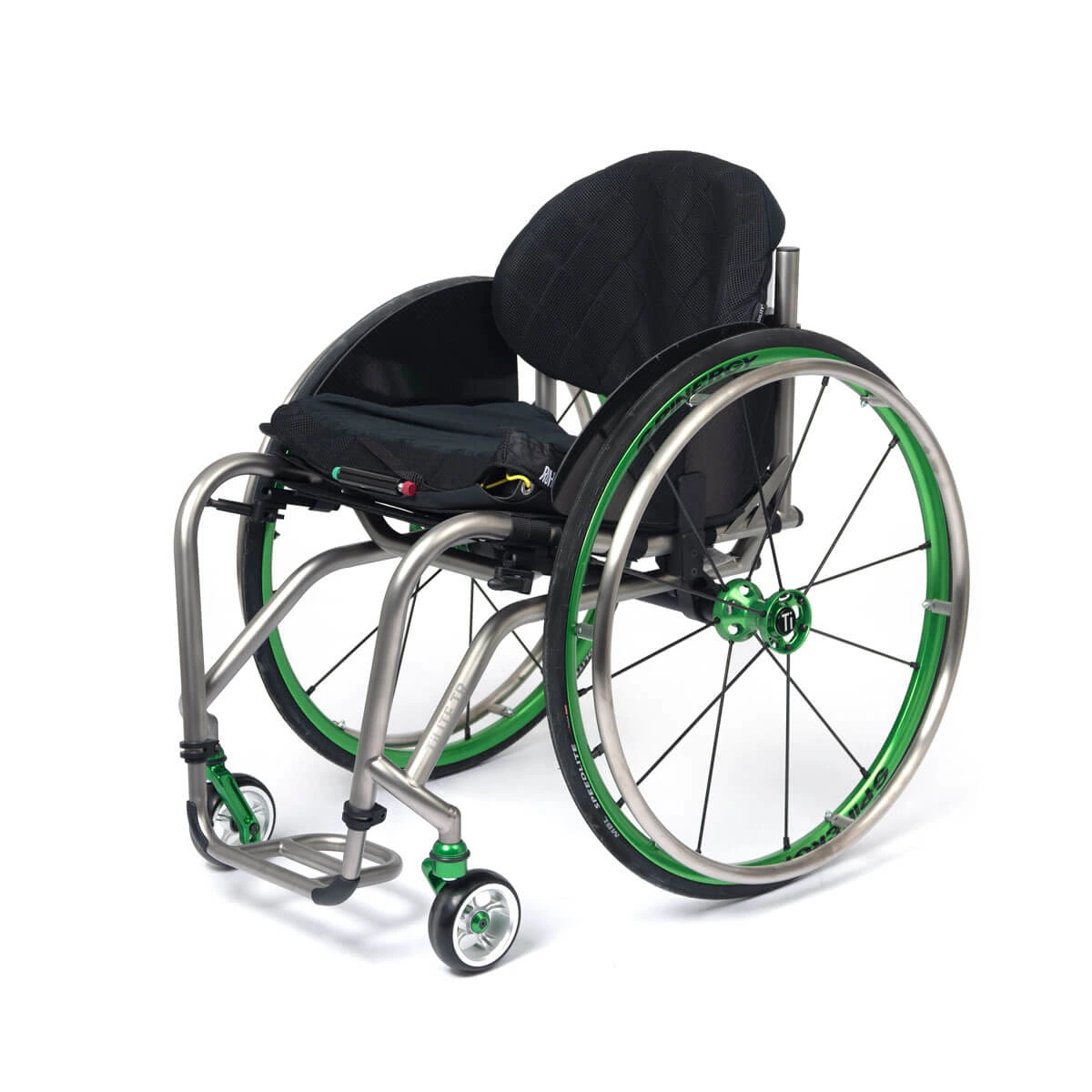

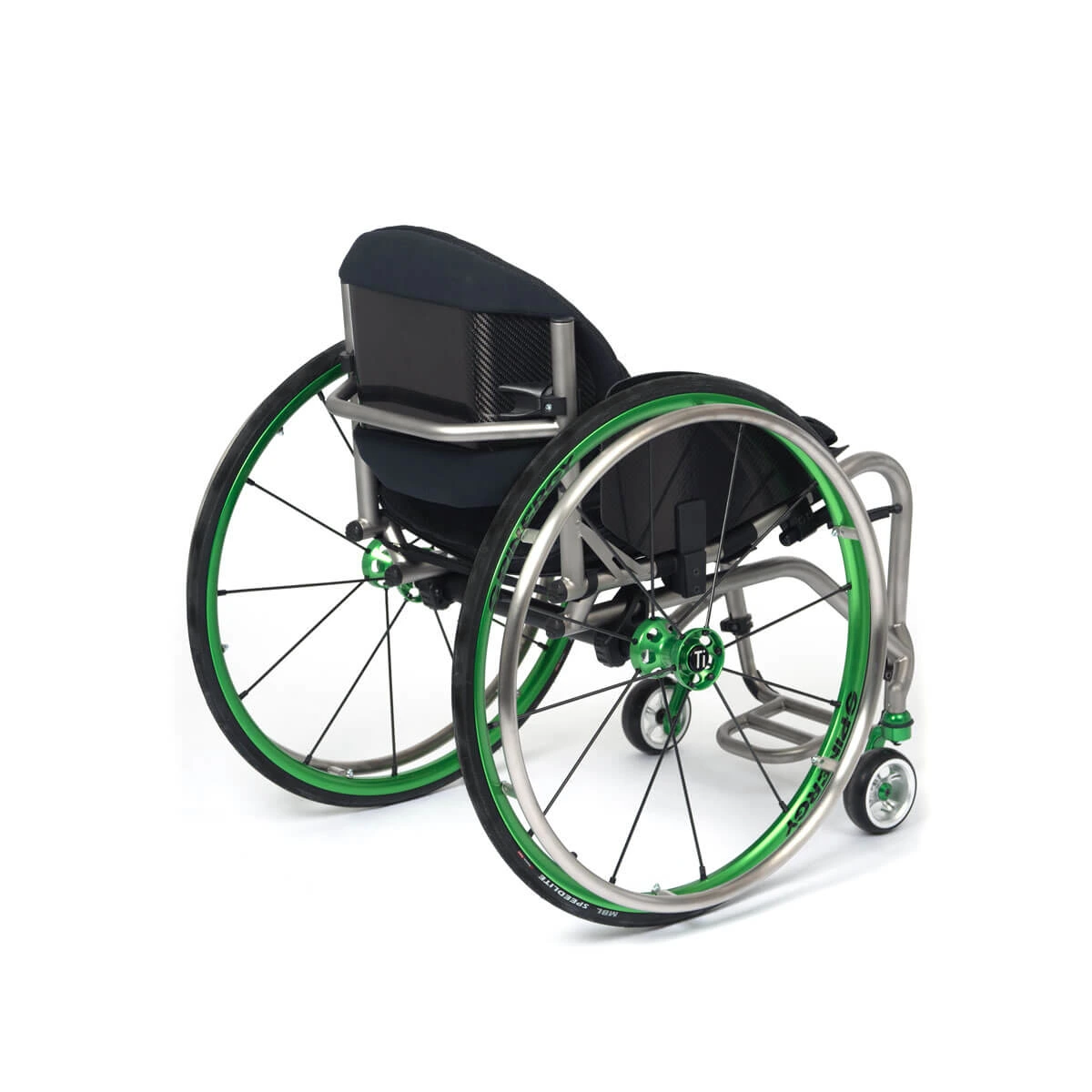

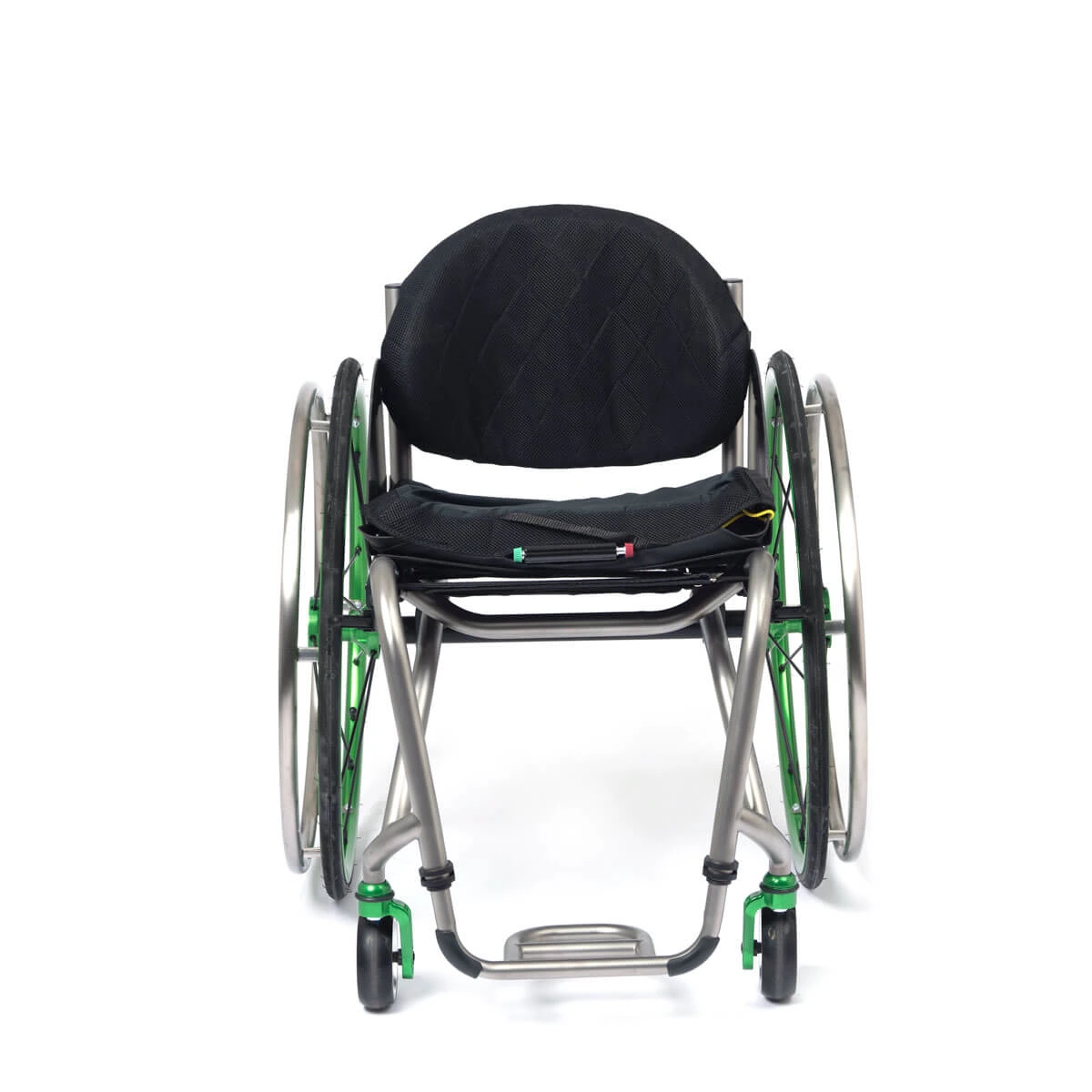

Lightweight, high-performance titanium wheelchairs, the TiLite TR and TiLite TRA are both dual-tube rigid titanium frames built for durability, style, and efficiency.
TiLite TR – The ultimate fixed-frame wheelchair for those who want a custom, locked-in fit for maximum efficiency.
Fixed or folding backrest option
Custom-built fixed seating position for stability
Adjustable center of gravity for balance
Dual-tube design for less frame flex and better energy transfer
Fixed caster angle for a responsive, lightweight feel
Please contact us for a quote tailored to your specific needs.
The TiLite TR is the ultimate expression of TiLite’s dual-tube design philosophy — where more equals less. Additional tubing distributes load better, allowing thinner walls and a smaller 1″ diameter of aerospace-grade titanium: the result is an exceptionally light, responsive, fully custom rigid wheelchair that all but disappears beneath the user.
Frame material: aerospace-grade titanium
Seat widths: 12″–20″; seat depths: 12″–20″
Frame options: Heavy Duty, Power Adaptable, Reinforced
Camber: 0°/2°/4°/6° (TRA up to 12°)
Front frame angle: 70°–90°
Fully custom Ti Fit configuration
For active rigid-frame users who want the ride and durability of titanium, custom-built to the individual. Contact us to configure your TiLite TR.
Specification
Details
Minimal Seat Width
12”
Maximum Seat Width
20”
Minimal Seat Depth
12”
Maximal Seat Depth
20”
Frame Material
Titanium
Frame Options
Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame
Ti Fit
Yes
Custom Configuration
Yes
Chair Width
23”
Camber
TR: 0°, 2°, 4°, or 6°; TRA: 0°, 2°, 4°, 6°, 8°, or 12°
