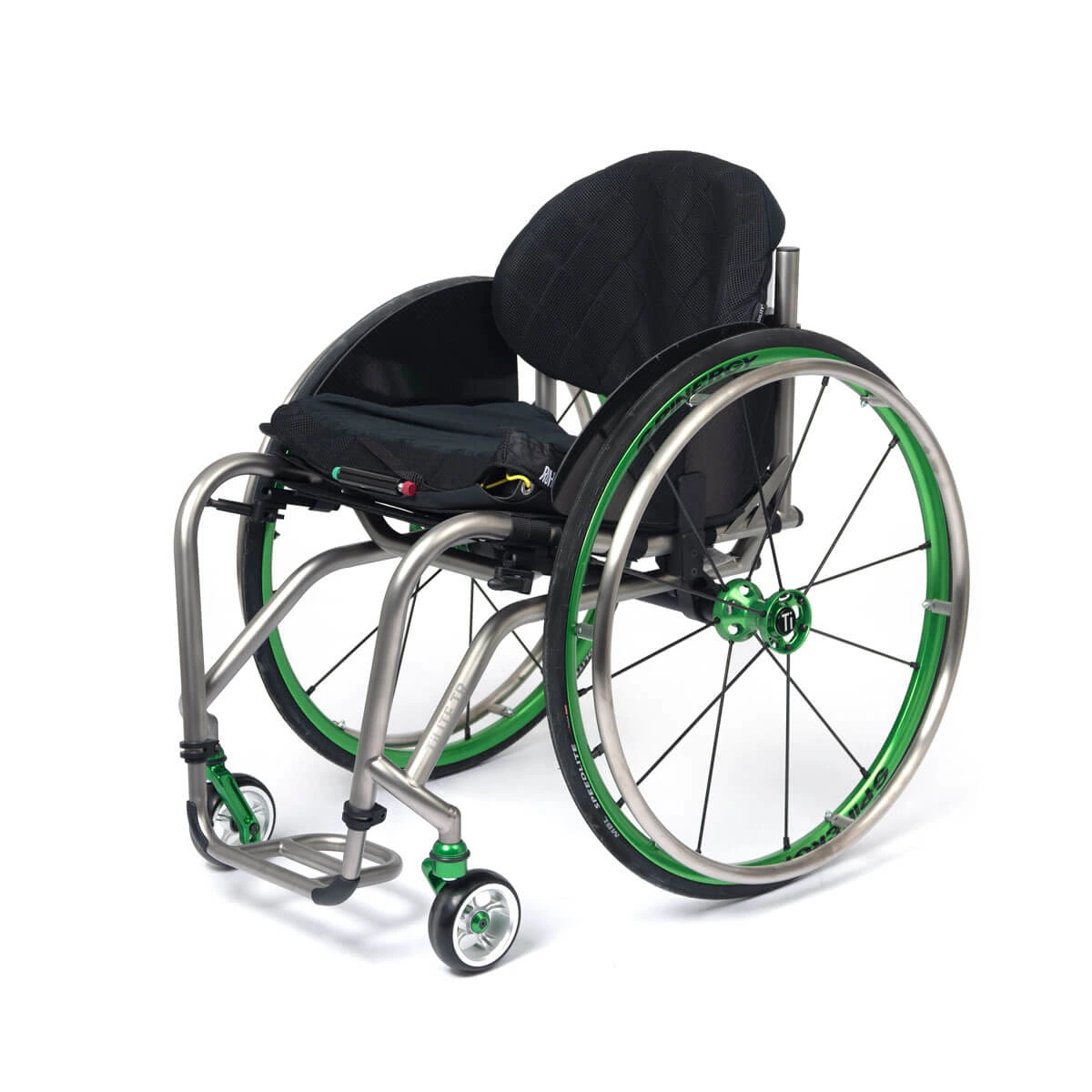

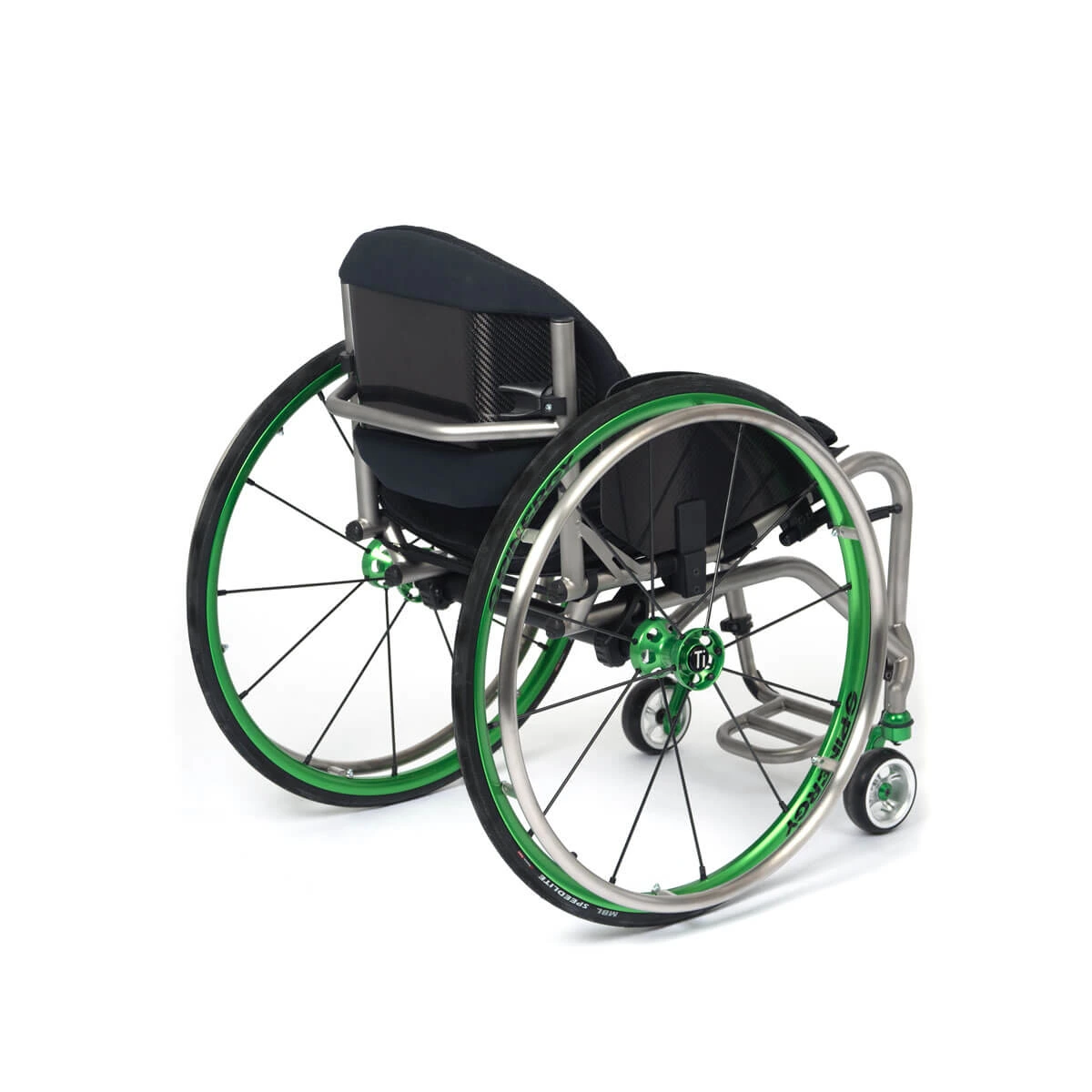

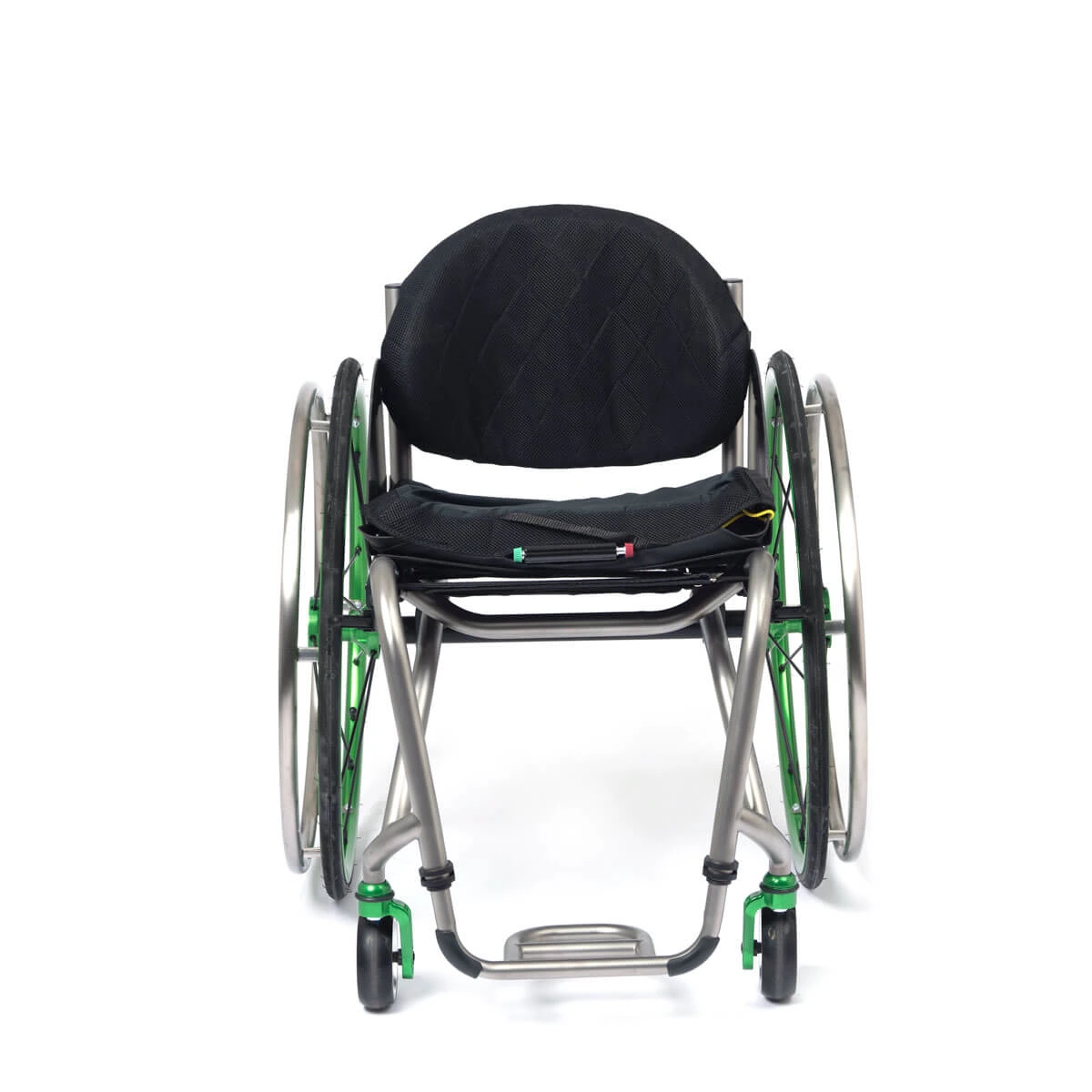

TiLite TR
Lightweight, high-performance titanium wheelchairs, the TiLite TR and TiLite TRA are both dual-tube rigid titanium frames built for durability, style, and efficiency.
TiLite TR – The ultimate fixed-frame wheelchair for those who want a custom, locked-in fit for maximum efficiency.
- Fixed or folding backrest option
- Custom-built fixed seating position for stability
- Adjustable center of gravity for balance
- Dual-tube design for less frame flex and better energy transfer
- Fixed caster angle for a responsive, lightweight feel
- Please contact us for a quote tailored to your specific needs.
Description
The ultimate embodiment of TiLite’s dual-tube design philosophy where more equals less. More tubing equals less weight
through better load distribution thanks to the thinner wall and
smaller diameter (1″) aerospace grade titanium tubing.
| Specification | Details |
|---|---|
| Minimal Seat Width | 12” |
| Maximum Seat Width | 20” |
| Minimal Seat Depth | 12” |
| Maximal Seat Depth | 20” |
| Frame Material | Titanium |
| Frame Options | Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame |
| Ti Fit | Yes |
| Custom Configuration | Yes |
| Chair Width | 23” |
| Camber | TR: 0°, 2°, 4°, or 6°; TRA: 0°, 2°, 4°, 6°, 8°, or 12° |
| Front Frame Angle | 70°, 75°, 80°, 85°, or 90° |
| Footrest Width Options | Standard Taper, V-Front End |
| Seat Back Type | Folding Seat Back |
| Center Of Gravity Adjustment | 5” |
| Transit Options | Q-Straint lock down approved |
| Front Seat Height Range | 15″ – 21″ |
| Rear Seat Height Range | TR: 12.5″ – 20″; TRA: 13″ – 21″ |
| Weight Limit | 265 lbs |
