M3 Corpus
Made for More

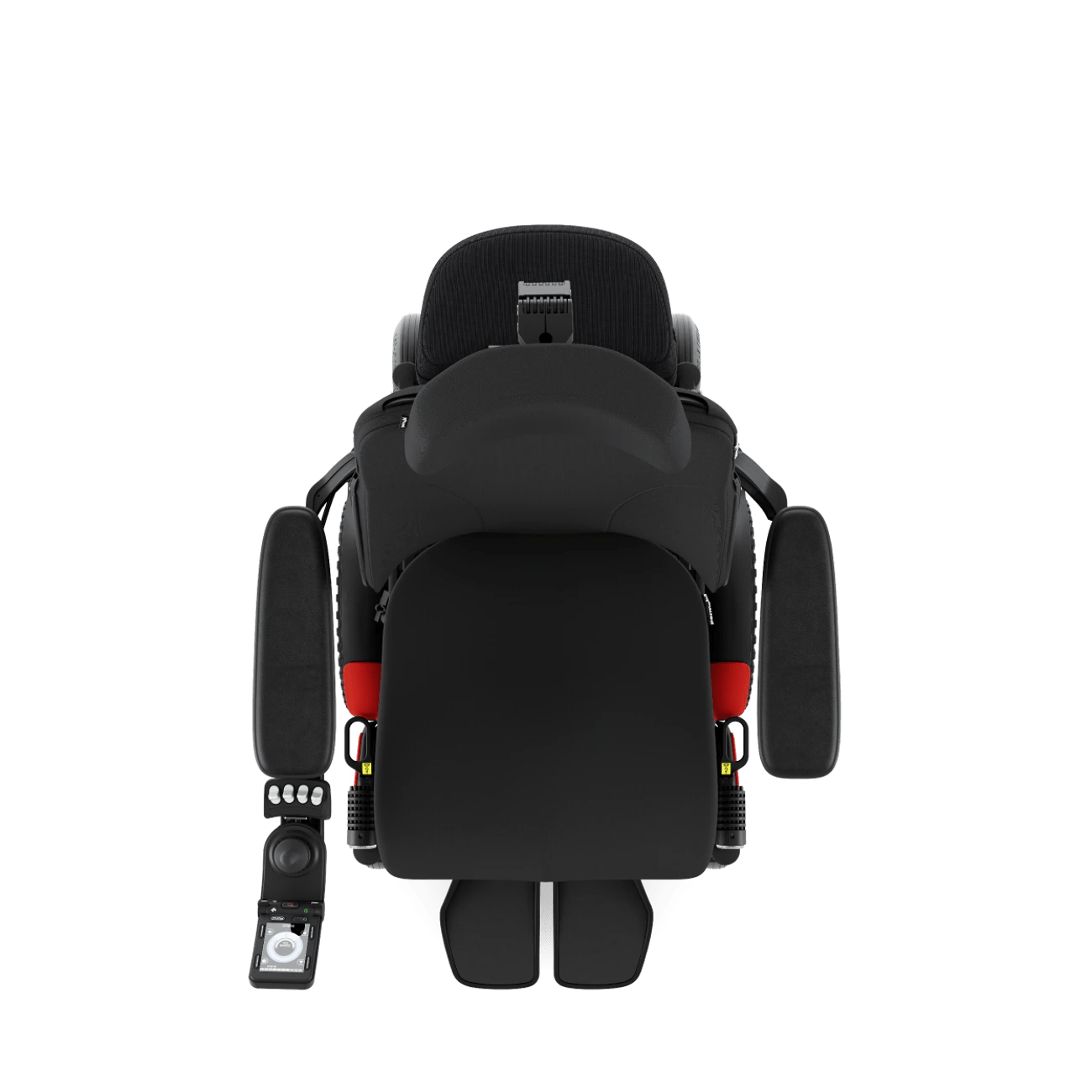

The M3 Corpus is a mid wheel drive power wheelchair engineered to provide stable positioning and reduced driving fatigue, making daily activities easier. The M3 Corpus has a compact base providing excellent maneuverability in tight spaces without compromising performance. Equipped with FlexLink suspension and independent caster swing-arms, it offers stability and control over obstacles. Now supporting users up to 330 lbs., the M3 Corpus combines comfort with functionality.
Made for More
The M3 Corpus is a mid wheel drive power wheelchair engineered to provide stable positioning and reduced driving fatigue, making daily activities easier. The M3 Corpus has a compact base providing excellent maneuverability in tight spaces without compromising performance. Equipped with FlexLink suspension and independent caster swing-arms, it offers stability and control over obstacles. Now supporting users up to 330 lbs., the M3 Corpus combines comfort with functionality.
Conquer More
More Visible
Designed for Independence
Permobil redesigned the knee supports necessary for standing and has created a lightweight, swing-away option that is 75% lighter than the original single-post design. It features improved comfort and allows for a more precision fit thanks to the integrated BOA® Fit System dial for micro adjustments. When you are ready to place or remove the knee supports, the looped release mechanism lets you take care of it independently since it works for a wide variety of hand functions. You’ll love the convenient on-chair storage along the seat rail which keeps the knee supports close at hand, but out of the way when not standing!
| Specification | Value |
|---|---|
| Maximum User Weight | 330 lb |
| Maximum Speed | 6 mph |
| Minimal Seat Width | 17″ |
| Maximum Seat Width | 23″ |
| Minimal Seat Depth | 14″ |
| Maximal Seat Depth | 22″ |
| Driving Range | 16 km (with Group 34 Gel), 20 miles (with Group 24 Gel) |
| Alternate Driving Range | 20 km |
| Base Width | 24″ |
| Base Length | 35.5″ |
| Minimum Turning Radius | 20.5″ |
| Ground Clearance | 3″ |
| Drive Electronics | R-Net 120A |
| Battery Type | Group 24 Gel (20 miles), Group 34 Gel (16 miles) |
| Seat to Floor Height | 17.5″, 18.5″, 19.5″ |
| Power Tilt Options | 0°–50° (Posterior), 5°, 10°, 20° (Anterior) |
| Recline Options | 85°–120° (manual), 85°–180° (power) |
| Legrest Elevation | 85°–180° |
| Armrest Pad Lengths | 13″, 16″, 18″ |
| Backrest Heights | 20″, 23″–28″ (1″ increments) |
| Optional Seat Elevator | 12″ |
| Drive Wheel | 14″ |
| Casters | 7″ |
| Weight Including Batteries | 385 lb |
