Description
Adaptable Seating & Positioning

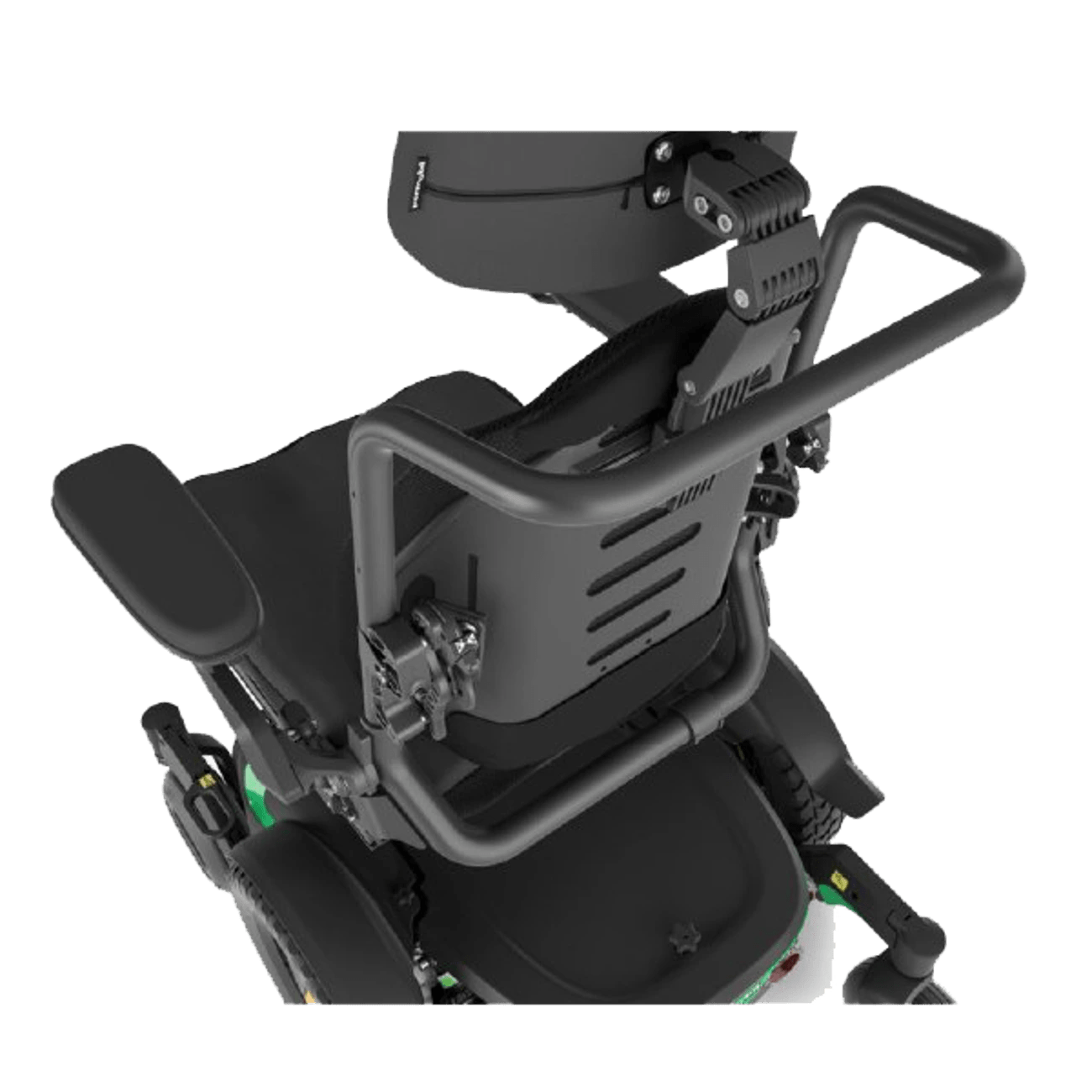

Open and sleek design with 1” diameter rigid tubular backrest frame allows mounting of virtually any seating and positioning solution. You can now select from a variety of positioning options from a simple curved back to custom molded seating – all with minimum loss of seat depth.
Durability You Can Feel
You can feel confident that your chair can withstand the rigors of an active lifestyle. The M1 features locking, flip back arm rests with two points of contact for added security. Center mount and swing-away leg rest options designed for durability and ease of use.
Proven Technology
Reliability comes standard with proven drive unit technology also found in the M1 power series. The unique suspension geometry and linear spring design provides a more stable chassis while the vibration dampening FlexLink™ ensures a smooth ride over a variety of terrain.
| Specification | Value |
|---|---|
| Maximum User Weight | 300 lb |
| Minimal Seat Width | 14″ |
| Maximum Seat Width | 22″ |
| Minimal Seat Depth | 14″ |
| Maximal Seat Depth | 22″ |
| Driving Range | 16 km |
| Base Width | 24″ |
| Base Length | 35.5″ |
| Minimum Turning Radius | 20.5″ |
| Ground Clearance | 3″ |
| Drive Electronics | R-Net 90A, VR2 PM 90 (Advanced), PM 70 (Advanced and Basic) |
| Battery Type | Group 34 |
| Seat to Floor Height | 16″, 17″, 18″ |
| Power Tilt Options | 0°–50° Posterior |
| Recline Options | 85°–110° (manual) |
| Armrest Pad Lengths | 10″, 13″, 14″ |
| Backrest Heights | 18″–29″ (by 1″ increments) |
| Weight Including Batteries | 319 lb |
