TiLite X
Tailored, unmatched, dependable – it’s your TiLite.
The TiLite X is a lightweight, high-performance aluminum folding wheelchair designed for custom fit, durability, and easy transport. Over 1 billion possible configuration options
Key features:
- Over 1 billion possible configuration options
- Light transport weight of just 12.1 lbs for effortless portability
- Single-piece side frame & redesigned cross-brace for increased strength and reduced weight.
- Gear Lock Caster System with single-tool adjustment for precise alignment in 2-degree increments.
Description
TiLite dependability
With a single-piece side frame and a re-designed cross-brace the TiLite X is lighter and more durable than ever.

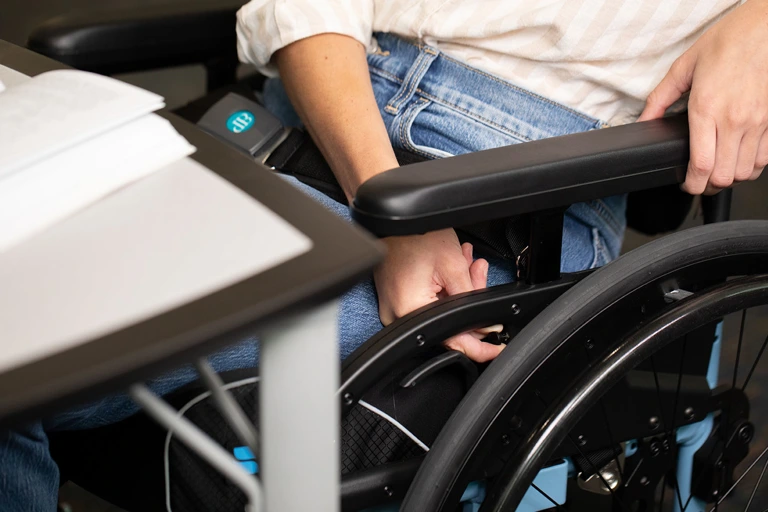

T-style armrest
The new flip-back or removable T-style armrest features an ergonomic release lever, on-the-go height adjustment, and a welded receiver that doesn’t rotate over time.

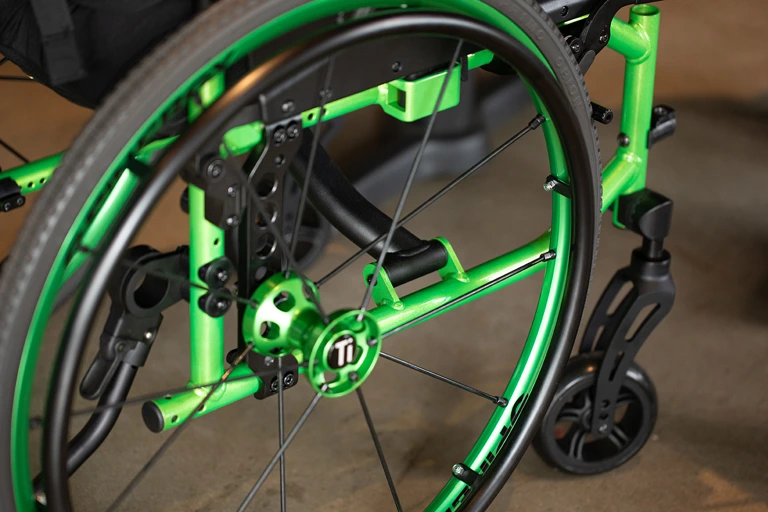

Gear Lock Caster
Featuring a single-tool adjustment with 2 degree increments, the Gear Lock Caster System allows for easy squaring of the front casters similar to our rigid chairs.
Truly personalized mobility with over 1 billion possible configurations and streamlined assembly, without compromising our signature quality and best-in-class performance.
With reduced transport weights and ultimate adjustability, these chairs are sure to adapt to your changing seating and mobility needs.
With reduced transport weights and ultimate adjustability, these chairs are sure to adapt to your changing seating and mobility needs.
| Specification | Details |
|---|---|
| Minimal Seat Width | 14” |
| Maximum Seat Width | 22” |
| Minimal Seat Depth | 14” |
| Maximal Seat Depth | 20” |
| Frame Material | Aluminum |
| Frame Options | Swing Away, Heavy Duty Frame |
| Ti Fit | N/A |
| Growable | Optional |
| Transport Weight | 12.1 lbs |
| Camber | 0°, 2°, or 4° |
| Front Frame Angle | 70°, 80°, or 85° |
| Footrest Width Options | Standard Taper |
| Seat Back Type | Folding Seat Back, Fixed Seat Back |
| Center Of Gravity Adjustment | 4” |
| Transit Options | Transit Tie-Down, Transport Bracket |
| Weight Limit | Standard: 300 lbs, HD: 350 lbs |
