Titanium folding wheelchair
The 2GX combines the advantages of a modular folding frame with the high strength and vibration dampening characteristics of titanium.
Add full adjustability and the 2GX is designed to empower !

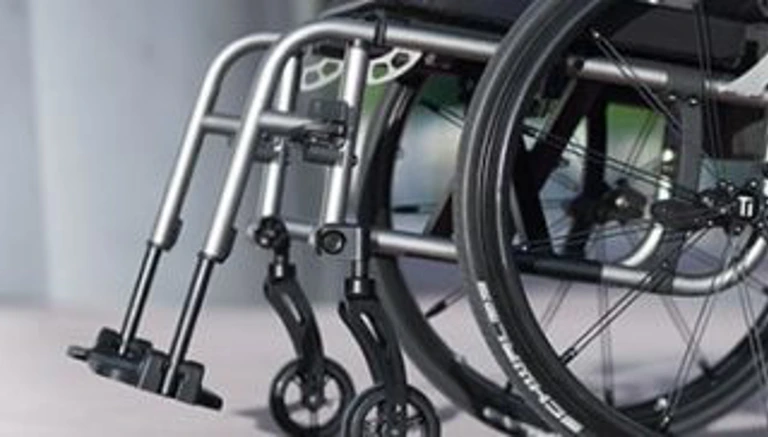

Modular Design
The modular frame design facilitates configurability in the field. This includes adding aftermarket seating systems, switching front ends, and growing chair width or depth to meet changing user needs.

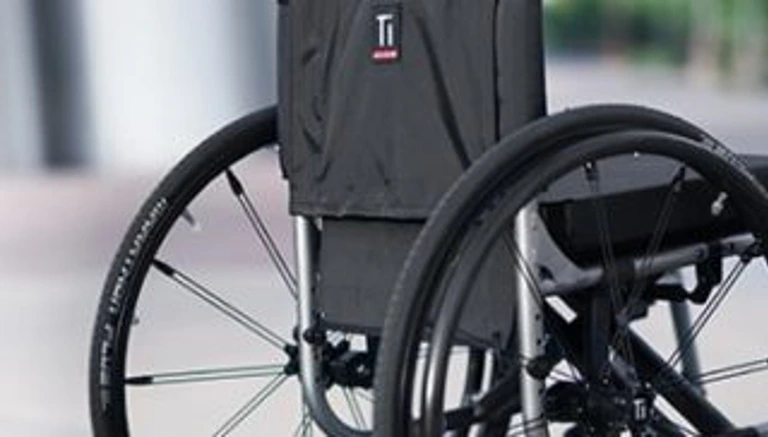

Full Adjustability
The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism allowing you to fine tune the fit of your wheelchair.

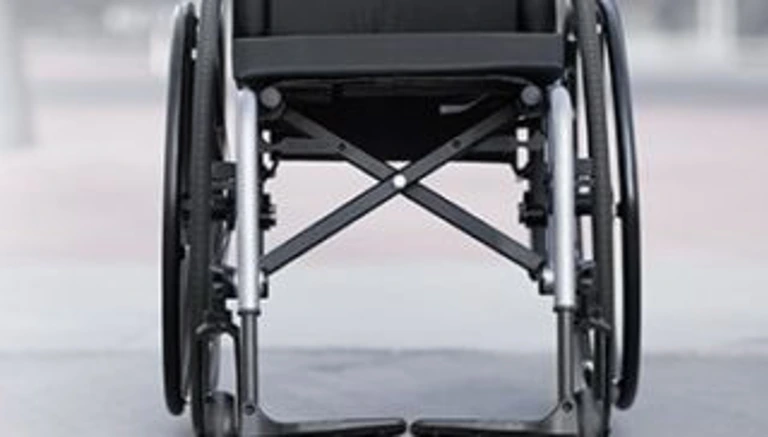

Folding Frame
The 2GX folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation.

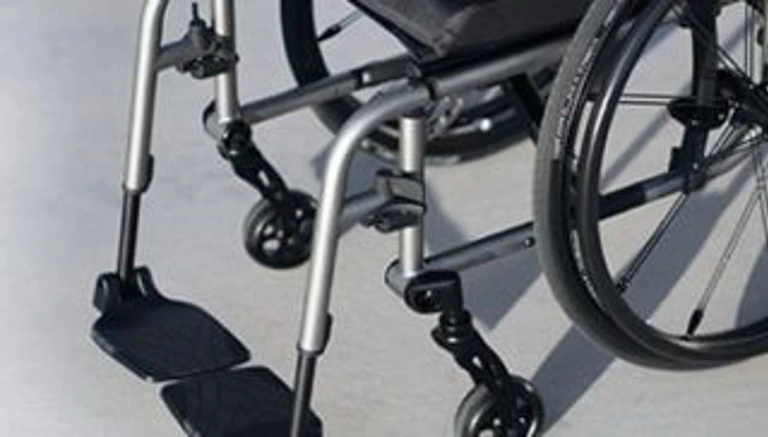

Titanium
Titanium provides a smoother ride, won’t break, and has the highest strength-to-weight ratio of any metal on Earth.
| Specification | Details |
|---|---|
| Minimal Seat Width | 12” |
| Maximum Seat Width | 22” |
| Minimal Seat Depth | 12” |
| Maximal Seat Depth | 20” |
| Frame Material | Titanium |
| Frame Options | Fixed Front End, Swing Away (All-In-One Swing In, Swing Out, & Removable), Hemi Height Frame, Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame |
| Ti Fit | N/A |
| Growable | Optional |
| Custom Configuration | Yes |
| Camber | 0°, 2°, 4°, or 6° |
| Front Frame Angle | Fixed Front: 70°, 80°, or 85°; Swing Away: 70°, 80°, 85°, or 90° |
| Footrest Width Options | Standard Taper |
| Seat Back Type | Folding Seat Back |
| Center Of Gravity Adjustment | 6” |
| Transit Options | Transport Bracket |
| Weight Limit | 265 lbs |
