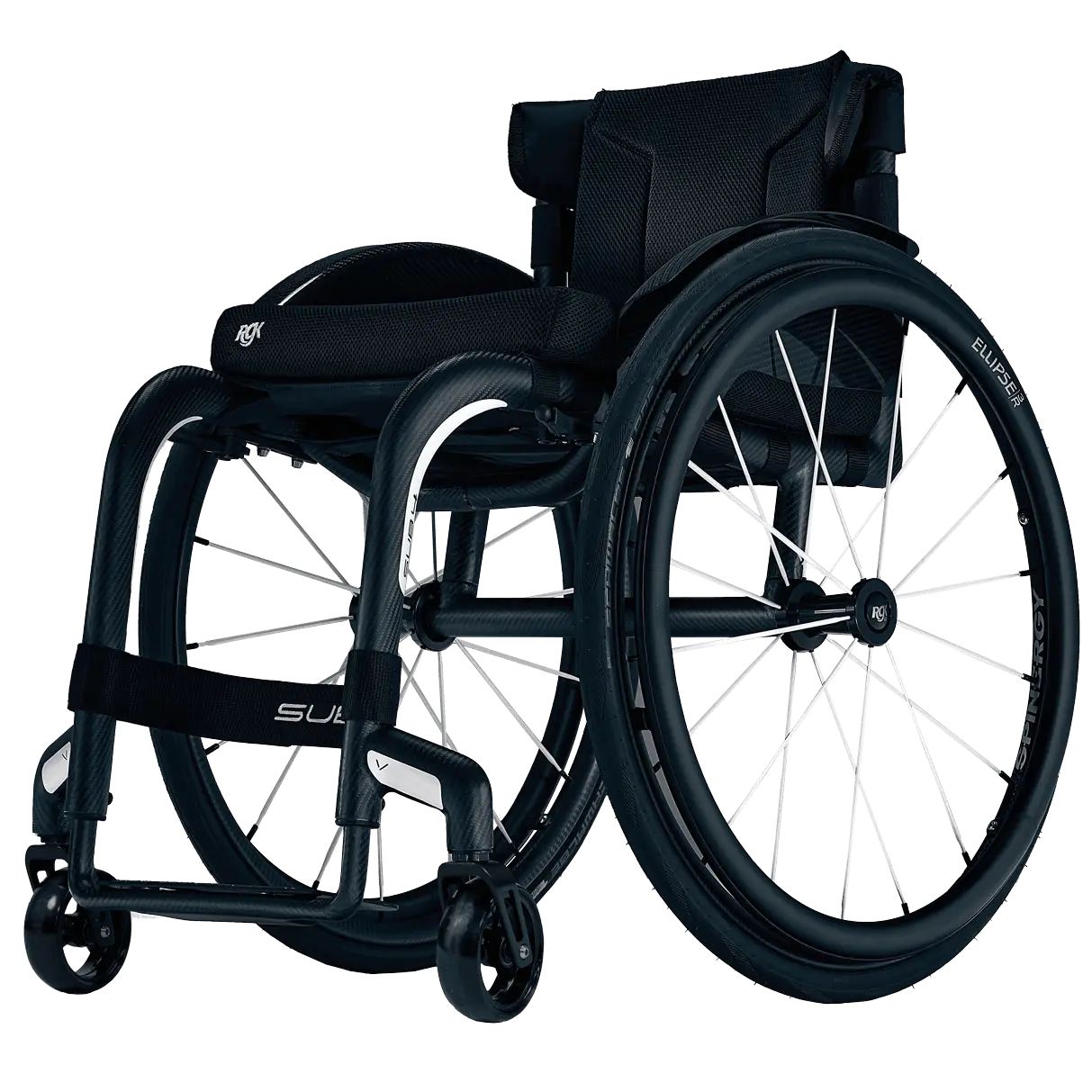

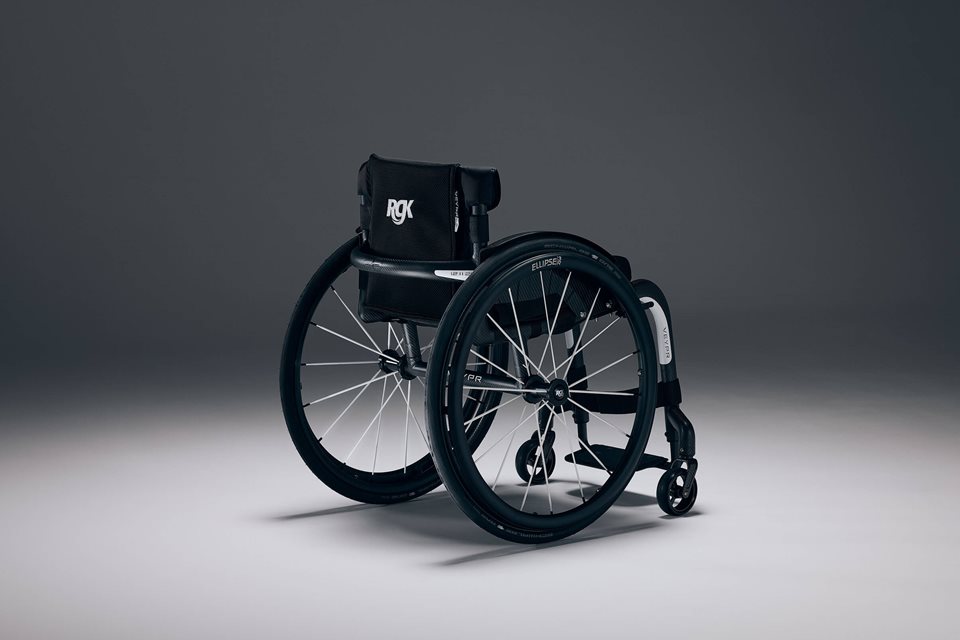

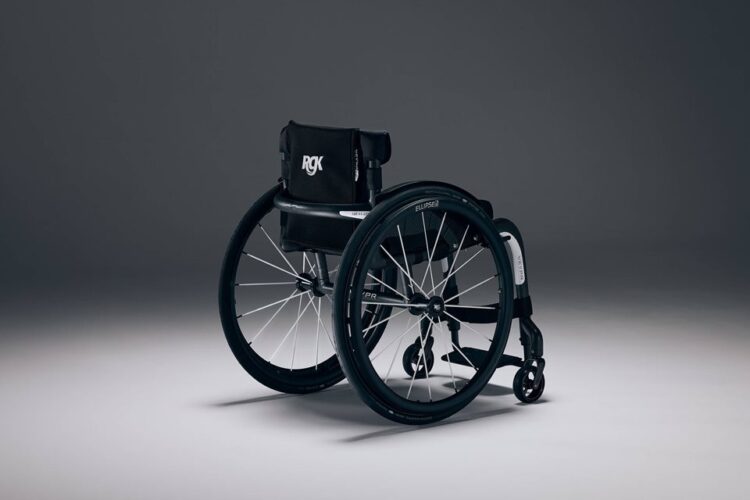

RGK Veypr Sub4 – Carbon Fibre
Made to measure – the perfect fit.
Only RGK offers the ‘real’ made to measure to create the ideal wheelchair.
With the lighter-than-ever Veypr Sub4, you can choose optimum posture, comfort and performance. Its carbon fibre frame is 10% lighter than the RGK Octane Sub4, and each frame is made to order. The ‘real’ made to measure is unlike any other and allows you to adjust the characteristics of each wheelchair to suit any individual needs – put a stamp on it, a unique colour, or a personal detail! The Veypr Sub4 decals can be personalized for each and every end user, and its build is made to ensure durability for an active lifestyle.
Sub 4 kg – Guaranteed
Your made-to-measure Veypr Sub4 wheelchair frame is guaranteed to be under 4 kg – we’ll even write the exact weight on your certified frame.

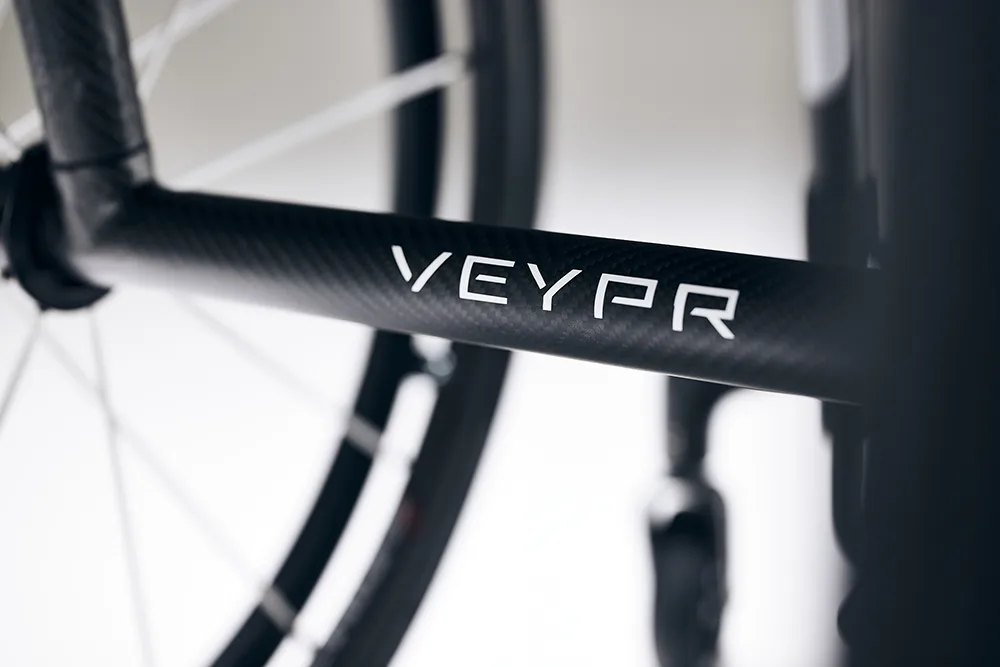

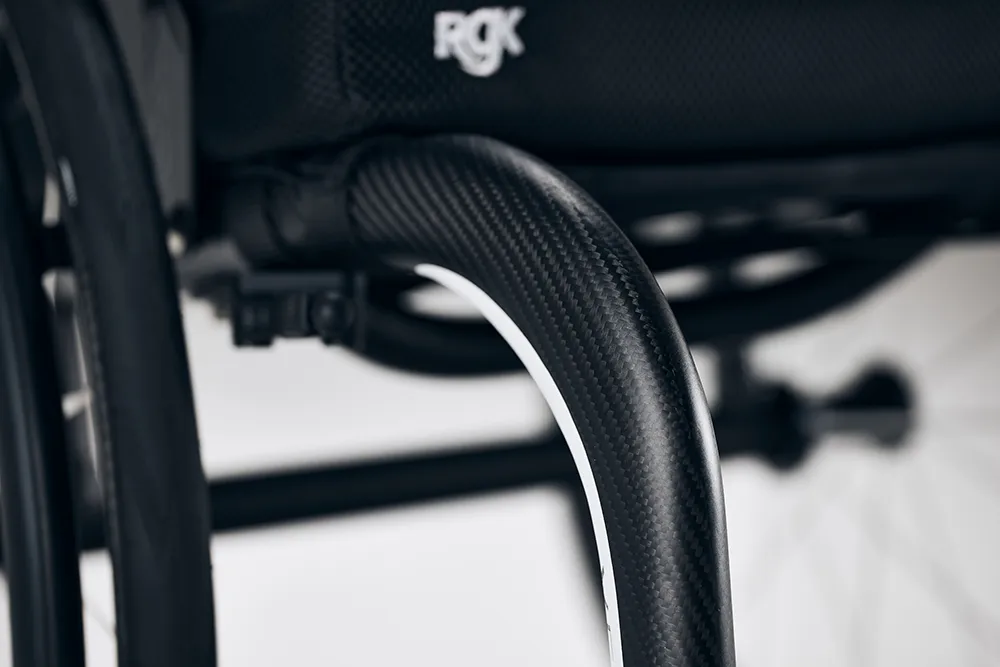

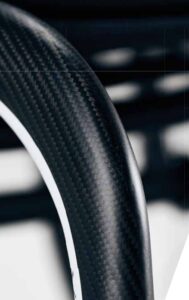

100% Carbon Fibre Frame
With new pioneering technology we have produced the world’s first truly made-to-measure carbon fibre wheelchair.
Ultra-Lightweight
A lighter wheelchair means everyday actions become easier. With the Veypr Sub4 transferring into the car and pushing long distances is effortless. This is the ultimate wheelchair for an active lifestyle.
| Feature | Min | Max | Notes |
|---|---|---|---|
| Overall Length (no wheels) | 390 mm | 625 mm | With leg rests |
| Overall Width (seat width) | 250 mm | 440 mm | Matches seat width range |
| Folded Height | N/A | N/A | Applies only to fold-back chairs |
| Total Mass (with wheels) | 5 kg | 15 kg * | Lightweight to mid-range |
| Heaviest Part (Transport Weight) | 3 kg | 12 kg * | Varies based on model configuration |
ULTRA-LIGHTWEIGHT SUB4 GUARANTEED
A lighter wheelchair means everyday actions become easier. With the Veypr Sub4 transferring into the car and pushing long distances is effortless.
This is the ultimate wheelchair for an active lifestyle.
| Feature | Min | Max | Notes |
|---|---|---|---|
| Static Stability – Downhill | N/A | 5° incline | |
| Static Stability – Uphill | N/A | 5° incline | |
| Static Stability – Sideways | N/A | 5° incline | |
| Seat Plan Angle (Tilt) | 0° | 45° | Passive tilt for positioning |
| Backrest Angle | -10° | 20° | Recline range |
| Feature | Min | Max | Notes |
|---|---|---|---|
| Effective Seat Depth | 250 mm | 440 mm | |
| Seat Height (Front Edge) | 380 mm | 520 mm | Front seat-to-floor height |
| Backrest Height | 150 mm | 400 mm | |
| Footrest-to-Seat Distance | 200 mm | 520 mm | |
| Leg-to-Seat Surface Angle | 70° | 90° | |
| Armrest-to-Seat Distance | N/A | N/A | Not specified |
| Front to Armrest Structure | N/A | N/A | Not specified |
| Feature | Min | Max | Notes |
|---|---|---|---|
| Hand Rim Diameter | 24″ in | 25″ in | Unusual format; likely refers to rear wheels |
| Axle Horizontal Location | 25 mm | 125 mm | Relates to center of gravity |
| Minimum Turning Radius | 270 mm | N/A | Very tight turning radius |
