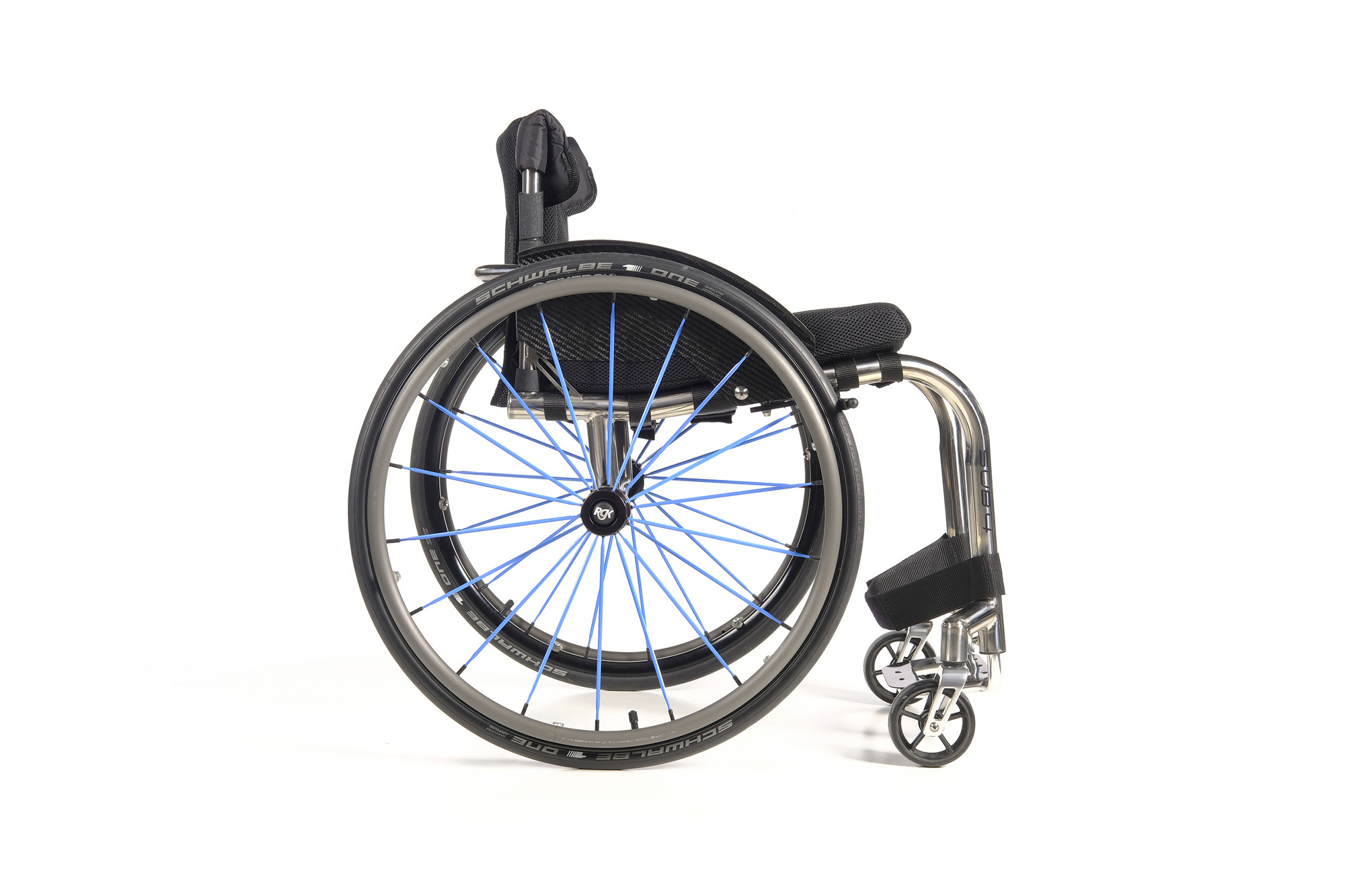

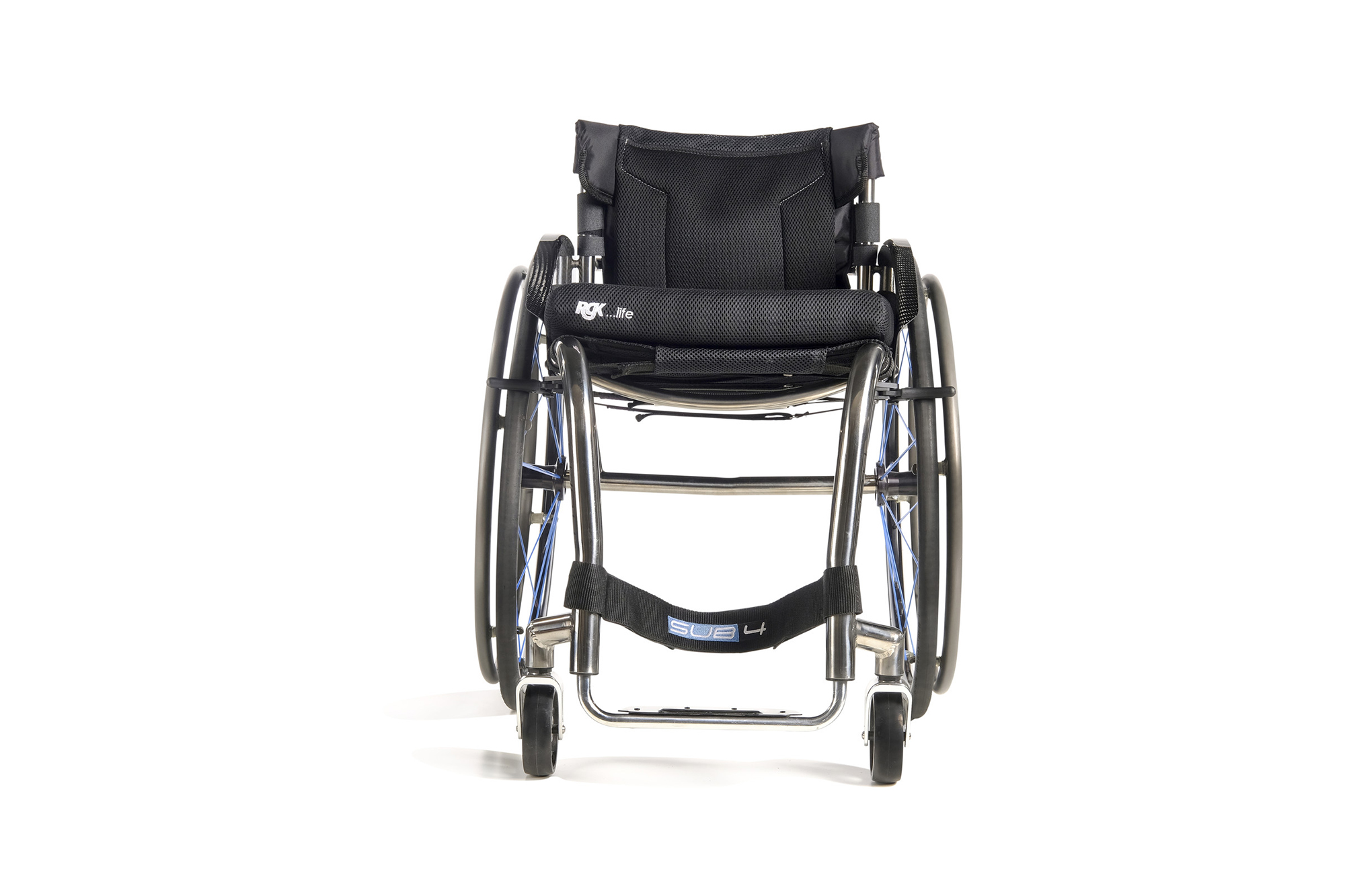

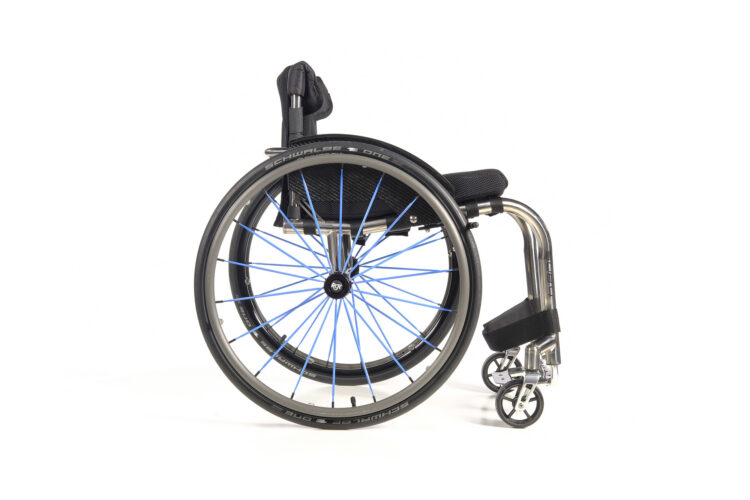

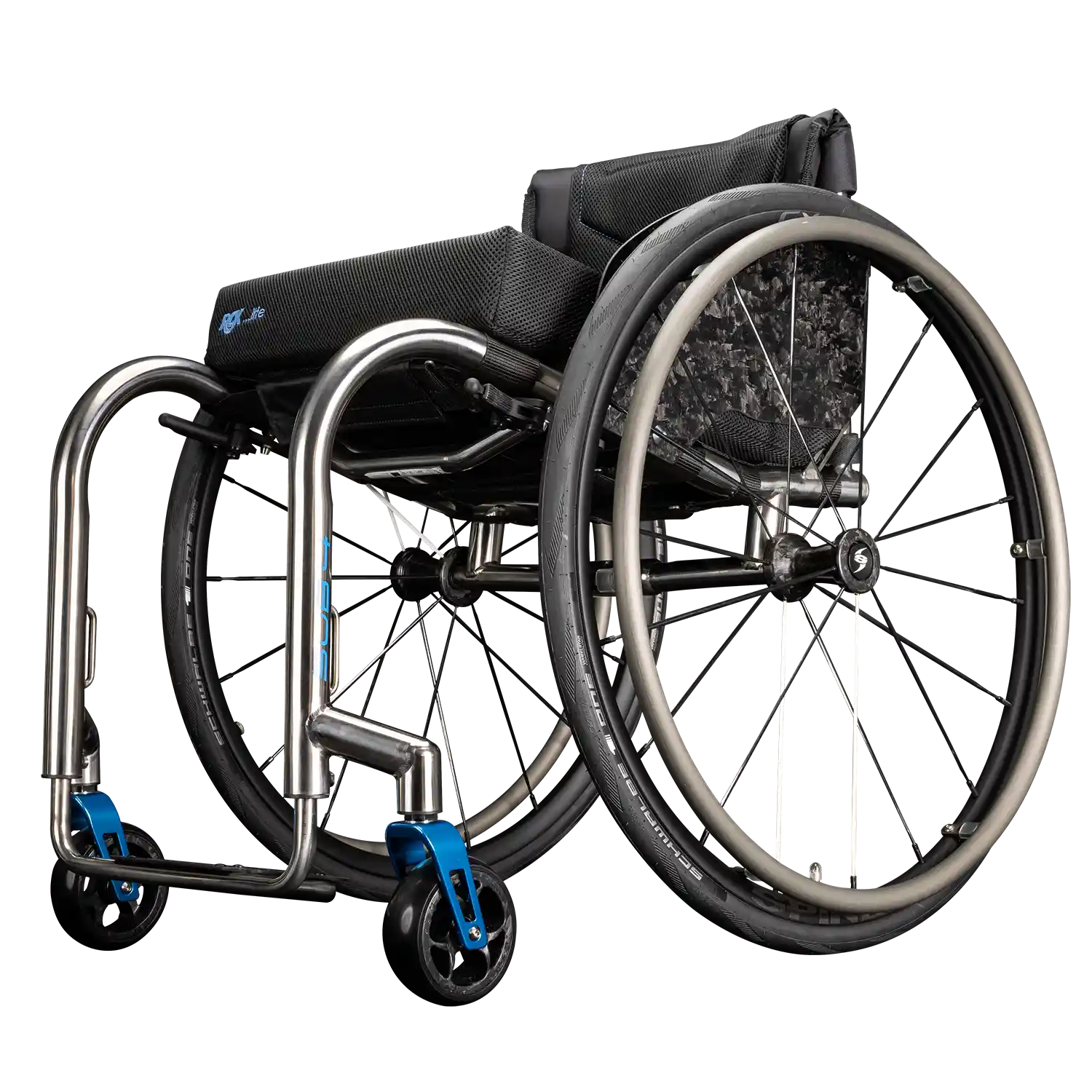

RGK Octane Sub4
Rethinking the ultra lightweight wheelchair from the ground up.
What weighs 4 kilograms (8.8 lbs)*? A newborn baby. A 7-week old Labrador puppy. The RGK Octane Sub4. For more than 3 decades, RGK has been at the forefront of made-to-measure manual wheelchair innovation. The Octane Sub4 is the result of our obsessive focus on perfecting fit and materials. Transferring, propelling, lifting, and turning are all effortless with the Octane Sub4.
Engineered for Lightness
Only the best materials are used in the RGK Octane Sub4. Titanium is renowned for having all of the positives of aluminum with the additional bonus of natural, intrinsic shock absorption. The utmost best performance of the Octane Sub4 is ensured by only using components produced by market leaders, alongside a staggering 19 quality checks throughout the build, from initial measurements to final handover.
- Sports bearing housing
- Stem bolt complete with integrated washer
- Low profile caster arm design
- Low profile cross braces

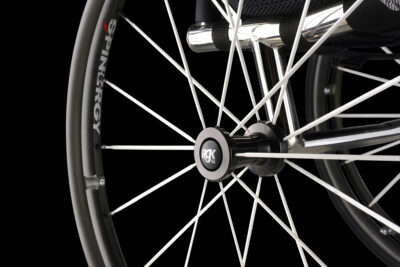

- Optimized axle and pin setup with titanium sleeves
- Compact wheel locks with lightweight mounting system
- Lightweight carbon fiber sideguards with fender and lightweight sideguard mounting system
- Lightweight carbon fiber footplate
- Titanium fasteners used throughout
- Optimized single or dual tube frame design
- Many non-certified wheelchair options available
The Many Benefits of Titanium
Alongside the smooth ride, beauty, and lightness of titanium, the Octane Sub4’s frame material is out of this world. Strong as steel but 45% lighter, titanium has the highest strength-to-weight ratio out of all the known metals. The Octane Sub4 is a breeze to push, wherever you go. It’s built to be durable, so you have peace of mind knowing you can take it anywhere.
Smooth Ride
The Octane Sub4’s titanium frame has natural built-in shock absorption to soak up road vibrations, which means that it delivers a super-smooth and comfortable ride quality like none other.
No Corrosion
Titanium will not rust and is very resistant to corrosion & salt water. It’s perfect for adventures out and about.
Strength-to-Weight Ratio
As strong as steel but 45% lighter, titanium has the highest strength-to-weight ratio of all known metals and is often used in aerospace applications.
Durability
A titanium frame like the Octane Sub4’s has a far greater ability to bend without breaking, elongating by up to 25% compared to around 15% for steel and 8% for aluminum.
Why Choose Made-to-Measure?
- THE PERFECT FIT
Over 30 individual measurements down to a 5mm (0.25″) tolerance are taken, allowing a chair to be crafted that fits the rider like a prosthetic. - LIGHTWEIGHT AND COMPACT DIMENSIONS
One of the ways to achieve the lightest wheelchair possible is to build that chair exactly to the rider’s specifications. That means no excess material, adjustments, or dimensions. - ERGONOMIC OPTIONS

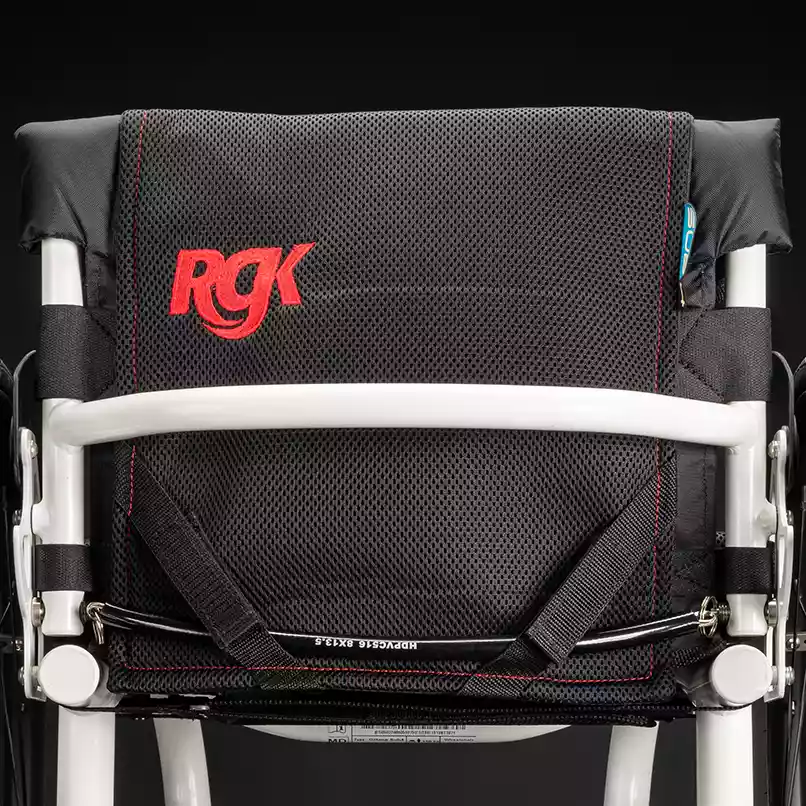

A wide range of ergonomic options such as seats and backrests are available to provide optimum posture, balance, and comfort. - RGK GENIUS PROGRAM
An RGK expert on made-to-measure manual wheelchairs, the RGK Genius will work with the rider, clinician, and provider to create the perfectly fitted chair.
| Feature | Range | Increments |
|---|---|---|
| Seat Width | 250mm – 440mm | 5mm |
| Seat Depth | 250mm – 440mm | 5mm |
| Front Seat-to-Floor | 380mm – 520mm | 5mm |
| Rear Seat-to-Floor | 360mm – 550mm | 5mm |
| Back Height | 203mm – 431mm | 5mm |
| Back Angle Adjustment | 80° – 100° | 20° range |
| Frame Angle | 60° – 90° (dependent on length) | Custom-fitted |
| Camber | 1° – 3° | Configurable |
| COG Adjustment | 0mm – 178mm | Variable |
| Feature | Value |
|---|---|
| Frame Material | Grade 9 Titanium |
| Model Number | SBT |
| Transit-Approved | No |
| Max User Weight | 242 lbs. (110 kg) |
| Chair Weight | < 8.8 lbs. (4 kg) (frame only) |
