FreeWheel Attachment Specifications:
Installation: The initial installation may take approximately 15 minutes, and after installation, the FreeWheel clamps on and off in seconds.
Footrest Height: If the height of your footrest is over 4-3/4″ you may require a custom frame FreeWheel. See additional information below.
Footrest Angle: If the angle of your footrest is more than 12% the FreeWheel may not work. Please contact us for more information.
Frame & Fork: Made from strong, aircraft quality aluminum means your FreeWheel comes with a Satisfaction Guarantee. The unique patented design adds strength and means there are no sharp edges to catch on anyone or anything.
Clamp: The precisely engineered vise like connection allows you to confidentially attach your FreeWhee for a secure fit and excellent handling.
Wheel: The large front wheel has less resistance than small casters and makes it easier to roll on any surface, whether you are alone, or someone is helping you.
Detent: This mechanism keeps the front wheel straight to improve stability and handling. By applying slight pressure, it will release, allowing you to quickly and easily turn in any direction.

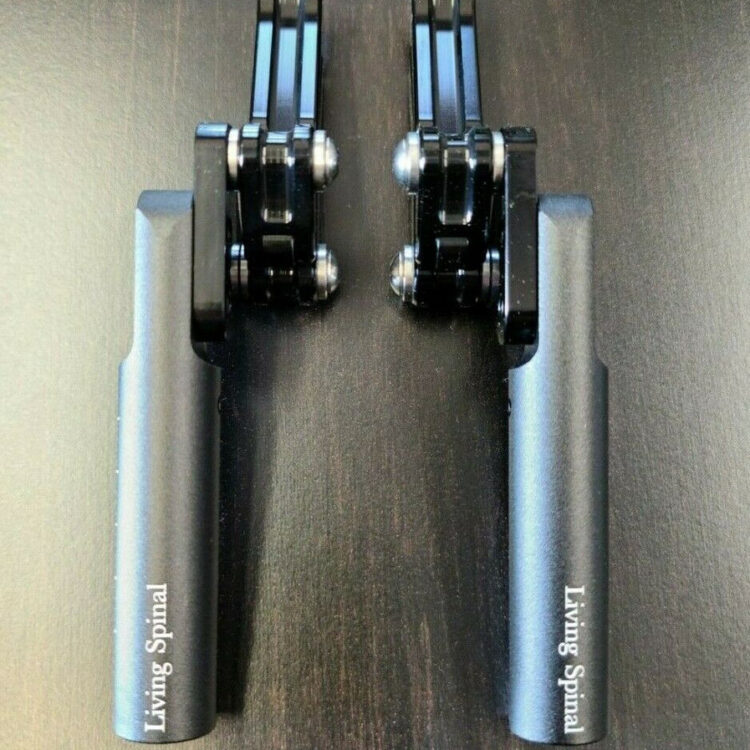

Perch: Attach the included perch onto your crossbar behind your seat back and clamp your FreeWheel onto it when you need to stow it. This allows you to have your FreeWheel literally at your fingertips and keeps it out of the way when not in use. Have your FreeWheel with you 24/7 to be ready for anything!
Restrictions: The FreeWheel works on solid rigid-frame footrests that are a maximum of 4-3/4″ off the ground. If your footrest is “angled” (footrest higher in front than in the back) it must be angled no more than 12 degrees for the FreeWheel to clamp securely to your chair.
Custom Frames:
Standard wheelchair frames have a distance of 4.75″ from the top of the footrest to the floor. If your chair has a greater distance, please choose the correct measurements from the option dropdown above. If you are in between sizes, choose the smaller size. Example: If your measurement is 7″. Choose the 6.5″ option.
5.5″ – If your footplate measures between 4.75″ – 6.5″, this custom size will work.
6.5″ – If your footplate measures between 5.5″ – 7.5″, this custom size frame will work.
7.5″ – If your footplate measures between 6.5″ – 8.5″, this custom size frame will work.
8.5″ – If your footplate measures between 7.5″ – 9.5″, this custom size frame will work.
Custom frames are available in black color only.
